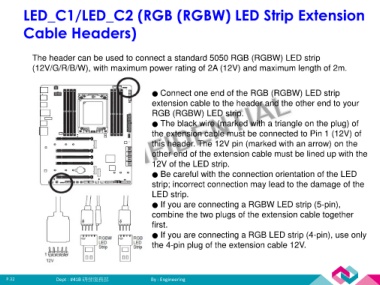

LED_C1/LED_C2 (RGB (RGBW) LED Strip Extension

Cable Headers)

The header can be used to connect a standard 5050 RGB (RGBW) LED strip

(12V/G/R/B/W), with maximum power rating of 2A (12V) and maximum length of 2m.

● Connect one end of the RGB (RGBW) LED strip
extension cable to the header and the other end to your

RGB (RGBW) LED strip.
● The black wire (marked with a triangle on the plug) of
the extension cable must be connected to Pin 1 (12V) of

this header. The 12V pin (marked with an arrow) on the
other end of the extension cable must be lined up with the

12V of the LED strip.
● Be careful with the connection orientation of the LED
strip; incorrect connection may lead to the damage of the

LED strip.
● If you are connecting a RGBW LED strip (5-pin),

combine the two plugs of the extension cable together
first.
● If you are connecting a RGB LED strip (4-pin), use only

the 4-pin plug of the extension cable 12V.
