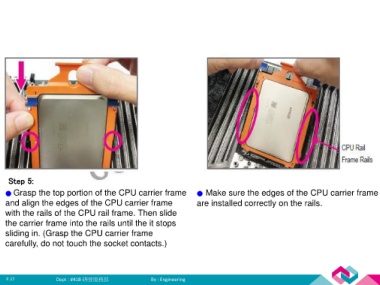

Step 5:
   ● Grasp the top portion of the CPU carrier frame                         ● Make sure the edges of the CPU carrier frame

   and align the edges of the CPU carrier frame                             are installed correctly on the rails.
   with the rails of the CPU rail frame. Then slide

   the carrier frame into the rails until the it stops
   sliding in. (Grasp the CPU carrier frame
   carefully, do not touch the socket contacts.)
