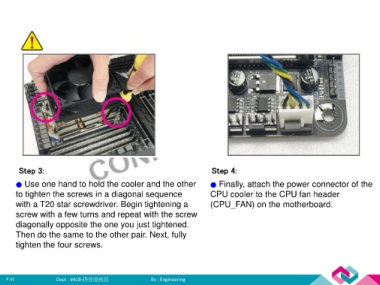

Step 3:                                                                   Step 4:
       ● Use one hand to hold the cooler and the other                           ● Finally, attach the power connector of the

       to tighten the screws in a diagonal sequence                              CPU cooler to the CPU fan header
       with a T20 star screwdriver. Begin tightening a                           (CPU_FAN) on the motherboard.

       screw with a few turns and repeat with the screw
       diagonally opposite the one you just tightened.
       Then do the same to the other pair. Next, fully

       tighten the four screws.
