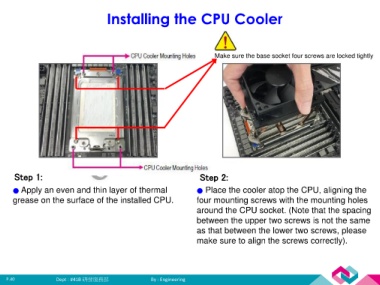

Installing the CPU Cooler








                                                                                  Make sure the base socket four screws are locked tightly




























        Step 1:                                                               Step 2:
      ● Apply an even and thin layer of thermal                             ● Place the cooler atop the CPU, aligning the
      grease on the surface of the installed CPU.                           four mounting screws with the mounting holes

                                                                            around the CPU socket. (Note that the spacing
                                                                            between the upper two screws is not the same

                                                                            as that between the lower two screws, please
                                                                            make sure to align the screws correctly).
