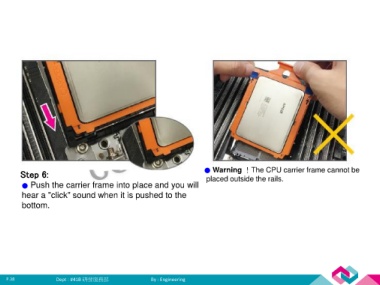

Step 6:                                                            ● Warning ！The CPU carrier frame cannot be
                                                                               placed outside the rails.
         ● Push the carrier frame into place and you will
         hear a "click" sound when it is pushed to the

         bottom.
