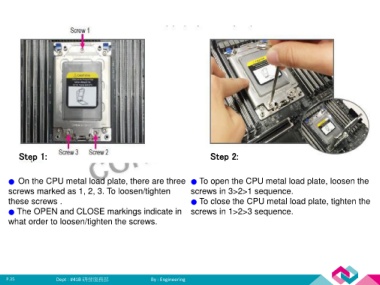

Step 1:                                                                  Step 2:



    ●  On the CPU metal load plate, there are three  ● To open the CPU metal load plate, loosen the
    screws marked as 1, 2, 3. To loosen/tighten                          screws in 3>2>1 sequence.
    these screws .                                                       ● To close the CPU metal load plate, tighten the

    ● The OPEN and CLOSE markings indicate in  screws in 1>2>3 sequence.
    what order to loosen/tighten the screws.
