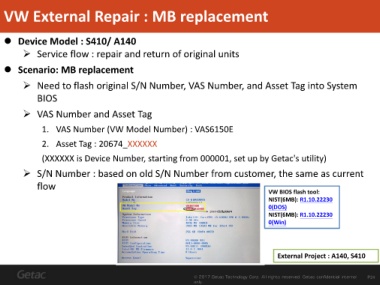

VW External Repair : MB replacement

 Device Model : S410/ A140

 Service flow : repair and return of original units

 Scenario: MB replacement

 Need to flash original S/N Number, VAS Number, and Asset Tag into System

BIOS

 VAS Number and Asset Tag

1. VAS Number (VW Model Number) : VAS6150E

2. Asset Tag : 20674_XXXXXX

(XXXXXX is Device Number, starting from 000001, set up by Getac's utility)

 S/N Number : based on old S/N Number from customer, the same as current

flow
VW BIOS flash tool:
NIST(6MB): R1.10.22230
0(DOS)
NIST(6MB): R1.10.22230
0(Win)

External Project : A140, S410
