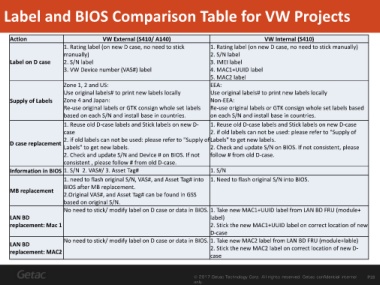

Label and BIOS Comparison Table for VW Projects

Action VW External (S410/ A140) VW Internal (S410)
1. Rating label (on new D case, no need to stick 1. Rating label (on new D case, no need to stick manually)
manually) 2. S/N label
Label on D case 2. S/N label 3. IMEI label
3. VW Device number (VAS#) label 4. MAC1+UUID label
5. MAC2 label
Zone 1, 2 and US: EEA:
Use original labels# to print new labels locally Use original labels# to print new labels locally
Supply of Labels Zone 4 and Japan: Non-EEA:
Re-use original labels or GTK consign whole set labels Re-use original labels or GTK consign whole set labels based
based on each S/N and install base in countries. on each S/N and install base in countries.
1. Reuse old D-case labels and Stick labels on new D- 1. Reuse old D-case labels and Stick labels on new D-case
case 2. if old labels can not be used: please refer to "Supply of
2. if old labels can not be used: please refer to "Supply of Labels" to get new labels.
D case replacement
Labels" to get new labels. 2. Check and update S/N on BIOS. If not consistent, please
2. Check and update S/N and Device # on BIOS. If not follow # from old D-case.
consistent , please follow # from old D-case.
Information in BIOS 1. S/N 2. VAS#/ 3. Asset Tag# 1. S/N
1. need to flash original S/N, VAS#, and Asset Tag# into 1. Need to flash original S/N into BIOS.
BIOS after MB replacement.
MB replacement
2.Original VAS#, and Asset Tag# can be found in GSS
based on original S/N.
No need to stick/ modify label on D case or data in BIOS. 1. Take new MAC1+UUID label from LAN BD FRU (module+
LAN BD label)
replacement: Mac 1 2. Stick the new MAC1+UUID label on correct location of new
D-case
No need to stick/ modify label on D case or data in BIOS. 1. Take new MAC2 label from LAN BD FRU (module+lable)
LAN BD 2. Stick the new MAC2 label on correct location of new D-
replacement: MAC2
case
