Page 21 - AX370-Gaming 5 Rev 1.0 Introduction_170317 CON_Neat

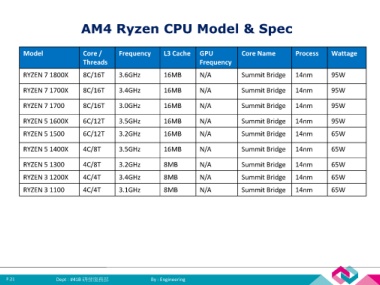

AM4 Ryzen CPU Model & Spec

Model Core / Frequency L3 Cache GPU Core Name Process Wattage
Threads Frequency

RYZEN 7 1800X 8C/16T 3.6GHz 16MB N/A Summit Bridge 14nm 95W

RYZEN 7 1700X 8C/16T 3.4GHz 16MB N/A Summit Bridge 14nm 95W

RYZEN 7 1700 8C/16T 3.0GHz 16MB N/A Summit Bridge 14nm 95W

RYZEN 5 1600X 6C/12T 3.5GHz 16MB N/A Summit Bridge 14nm 95W

RYZEN 5 1500 6C/12T 3.2GHz 16MB N/A Summit Bridge 14nm 65W

RYZEN 5 1400X 4C/8T 3.5GHz 16MB N/A Summit Bridge 14nm 65W

RYZEN 5 1300 4C/8T 3.2GHz 8MB N/A Summit Bridge 14nm 65W

RYZEN 3 1200X 4C/4T 3.4GHz 8MB N/A Summit Bridge 14nm 65W

RYZEN 3 1100 4C/4T 3.1GHz 8MB N/A Summit Bridge 14nm 65W

P.21 Dept : #41B 研發服務部 By : Engineering
