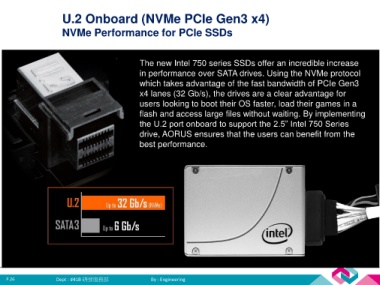

U.2 Onboard (NVMe PCIe Gen3 x4)

NVMe Performance for PCIe SSDs

The new Intel 750 series SSDs offer an incredible increase
in performance over SATA drives. Using the NVMe protocol

which takes advantage of the fast bandwidth of PCIe Gen3
x4 lanes (32 Gb/s), the drives are a clear advantage for
users looking to boot their OS faster, load their games in a

flash and access large files without waiting. By implementing
the U.2 port onboard to support the 2.5” Intel 750 Series

drive, AORUS ensures that the users can benefit from the
best performance.
