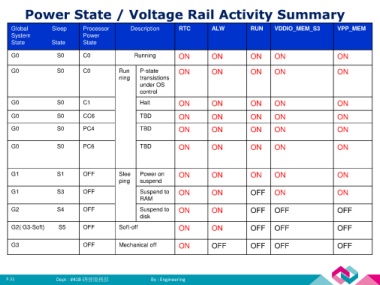

Power State / Voltage Rail Activity Summary
Global Sleep Processor Description RTC ALW RUN VDDIO_MEM_S3 VPP_MEM
System Power
State State State
G0 S0 C0 Running ON ON ON ON ON
G0 S0 C0 Run P-state ON ON ON ON ON
ning transistions
under OS
control
G0 S0 C1 Halt ON ON ON ON ON
G0 S0 CC6 TBD ON ON ON ON ON
G0 S0 PC4 TBD ON ON ON ON ON
G0 S0 PC6 TBD ON ON ON ON ON
G1 S1 OFF Slee Power on ON ON ON ON ON
ping suspend
G1 S3 OFF Suspend to ON ON OFF ON ON
RAM
G2 S4 OFF Suspend to ON ON OFF OFF OFF
disk
G2( G3-Soft) S5 OFF Soft-off ON ON OFF OFF OFF
G3 OFF Mechanical off ON OFF OFF OFF OFF
