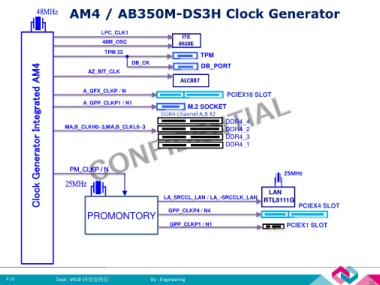

AM4 / AB350M-DS3H Clock Generator
               48MHz



                                       LPC_CLK1
                                                                      ITE
                                        48M_OSC                      8628E

                                         TPM 33
                                                                             TPM
                                                   DB_CK
                Clock Generator Integrated AM4
                                                                             DB_PORT
                                  AZ_BIT_CLK
                                                                     ALC887

                                A_GFX_CLKP / N
                                                                                       PCIEX16 SLOT
                                A_GPP_CLKP1 / N1
                                                                        M.2 SOCKET
                                                              DDR4 Channel A,B X2
                                                                                       DDR4_4
                          MA,B_CLKH0~3,MA,B_CLKL0~3                                    DDR4_2

                                                                                       DDR4_3
                                                                                       DDR4_1




                           PM_CLKP / N                                                                       25MHz

                          25MHz
                                                                                                          LAN
                                                               LA_SRCCL_LAN / LA_-SRCCLK_LAN
                                                                                                      RTL8111G
                                                                                                                  PCIEX4 SLOT
                                                                 GPP_CLKP4 / N4
                                  PROMONTORY
                                                                 GPP_CLKP1 / N1                               PCIEX1 SLOT
