Page 14 - X299 AORUS Gaming 7 V1.0 Introduction _170706_Neat
P. 14

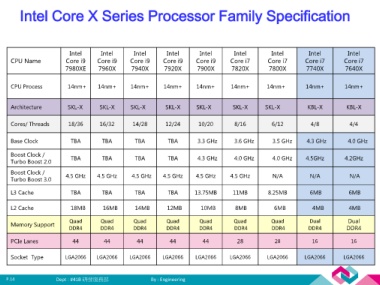

Intel Core X Series Processor Family Specification
Intel Intel Intel Intel Intel Intel Intel Intel Intel
CPU Name Core i9 Core i9 Core i9 Core i9 Core i9 Core i7 Core i7 Core i7 Core i7
7980XE 7960X 7940X 7920X 7900X 7820X 7800X 7740X 7640X
CPU Process 14nm+ 14nm+ 14nm+ 14nm+ 14nm+ 14nm+ 14nm+ 14nm+ 14nm+
Architecture SKL-X SKL-X SKL-X SKL-X SKL-X SKL-X SKL-X KBL-X KBL-X
Cores/ Threads 18/36 16/32 14/28 12/24 10/20 8/16 6/12 4/8 4/4
Base Clock TBA TBA TBA TBA 3.3 GHz 3.6 GHz 3.5 GHz 4.3 GHz 4.0 GHz
Boost Clock /
Turbo Boost 2.0 TBA TBA TBA TBA 4.3 GHz 4.0 GHz 4.0 GHz 4.5GHz 4.2GHz
Boost Clock / 4.5 GHz 4.5 GHz 4.5 GHz 4.5 GHz 4.5 GHz 4.5 GHz N/A N/A N/A
Turbo Boost 3.0
L3 Cache TBA TBA TBA TBA 13.75MB 11MB 8.25MB 6MB 6MB
L2 Cache 18MB 16MB 14MB 12MB 10MB 8MB 6MB 4MB 4MB
Memory Support Quad Quad Quad Quad Quad Quad Quad Dual Dual
DDR4 DDR4 DDR4 DDR4 DDR4 DDR4 DDR4 DDR4 DDR4
PCIe Lanes 44 44 44 44 44 28 28 16 16
Socket Type LGA2066 LGA2066 LGA2066 LGA2066 LGA2066 LGA2066 LGA2066 LGA2066 LGA2066
P.14 Dept : #41B 研發服務部 By : Engineering
