Page 15 - X299 AORUS Gaming 7 V1.0 Introduction _170706_Neat
P. 15

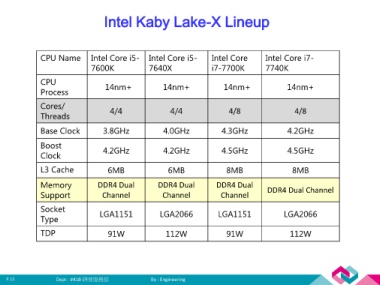

Intel Kaby Lake-X Lineup
CPU Name Intel Core i5- Intel Core i5- Intel Core Intel Core i7-
7600K 7640X i7-7700K 7740K
CPU 14nm+ 14nm+ 14nm+ 14nm+
Process
Cores/ 4/4 4/4
Threads 4/8 4/8
Base Clock 3.8GHz 4.0GHz 4.3GHz 4.2GHz
Boost
Clock 4.2GHz 4.2GHz 4.5GHz 4.5GHz
L3 Cache 6MB 6MB 8MB 8MB
Memory DDR4 Dual DDR4 Dual DDR4 Dual DDR4 Dual Channel
Support Channel Channel Channel
Socket LGA1151 LGA2066 LGA1151 LGA2066
Type
TDP 91W 112W 91W 112W
P.15 Dept : #41B 研發服務部 By : Engineering
