Page 25 - X299 AORUS Gaming 7 V1.0 Introduction _170706_Neat

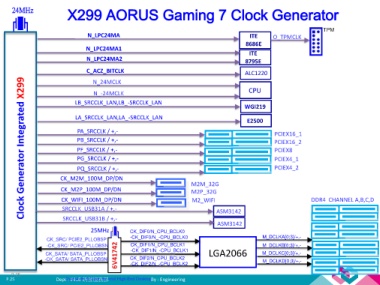

X299 AORUS Gaming 7 Clock Generator
24MHz

TPM
N_LPC24MA ITE O_TPMCLK
8686E
N_LPC24MA1
ITE
N_LPC24MA2
8795E
C_ACZ_BITCLK ALC1220
Clock Generator Integrated X299
N_24MCLK
CPU
N_-24MCLK
LB_SRCCLK_LAN,LB_-SRCCLK_LAN
WGI219
LA_SRCCLK_LAN,LA_-SRCCLK_LAN
E2500
PA_SRCCLK / +,-
PCIEX16_1
PB_SRCCLK / +,- PCIEX16_2

PF_SRCCLK / +,- PCIEX8
PG_SRCCLK / +,- PCIEX4_1
PQ_SRCCLK / +,- PCIEX4_2

CK_M2M_100M_DP/DN
M2M_32G
CK_M2P_100M_DP/DN M2P_32G

CK_WIFI_100M_DP/DN M2_WIFI DDR4 CHANNEL A,B,C,D
SRCCLK_USB31A / +,-
ASM3142
SRCCLK_USB31B / +,-
ASM3142

25MHz CK_DIF0/N_CPU_BCLK0
-CK_DIF0/N_-CPU_BCLK0 M_DCLKA[0;3]/+,-
CK_SRC/ PCIE2_PLLOBSP
-CK_SRC/ PCIE2_PLLOBSN CK_DIF1/N_CPU_BCLK1 M_DCLKB[0;3]/+,-
-CK_DIF1/N_-CPU_BCLK1
CK_SATA/ SATA_PLLOBSP LGA2066 M_DCLKC[0;3]/+,-
-CK_SATA/ SATA_PLLOBSN CK_DIF2/N_CPU_BCLK2 M_DCLKD[0;3]/+,-
-CK_DIF2/N_-CPU_BCLK2
