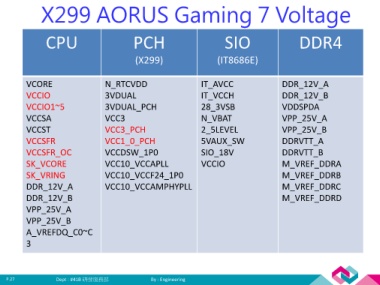

X299 AORUS Gaming 7 Voltage
CPU PCH SIO DDR4
(X299) (IT8686E)
VCORE N_RTCVDD IT_AVCC DDR_12V_A
VCCIO 3VDUAL IT_VCCH DDR_12V_B
VCCIO1~5 3VDUAL_PCH 28_3VSB VDDSPDA
VCCSA VCC3 N_VBAT VPP_25V_A
VCCST VCC3_PCH 2_5LEVEL VPP_25V_B
VCCSFR VCC1_0_PCH 5VAUX_SW DDRVTT_A
VCCSFR_OC VCCDSW_1P0 SIO_18V DDRVTT_B
SK_VCORE VCC10_VCCAPLL VCCIO M_VREF_DDRA
SK_VRING VCC10_VCCF24_1P0 M_VREF_DDRB
DDR_12V_A VCC10_VCCAMPHYPLL M_VREF_DDRC
DDR_12V_B M_VREF_DDRD
VPP_25V_A
VPP_25V_B
A_VREFDQ_C0~C
3
