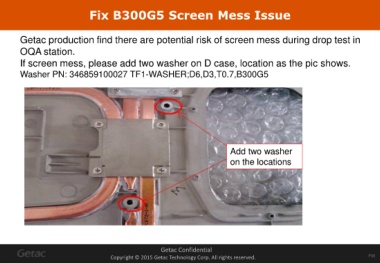

Fix B300G5 Screen Mess Issue





         Getac production find there are potential risk of screen mess during drop test in

         OQA station.

         If screen mess, please add two washer on D case, location as the pic shows.

         Washer PN: 346859100027 TF1-WASHER;D6,D3,T0.7,B300G5















                                                                                                Add two washer
                                                                                                on the locations
