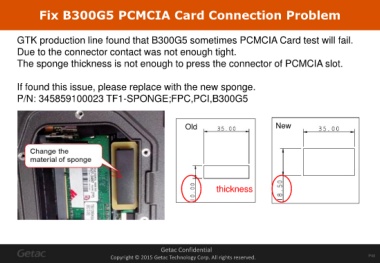

Fix B300G5 PCMCIA Card Connection Problem





        GTK production line found that B300G5 sometimes PCMCIA Card test will fail.

        Due to the connector contact was not enough tight.

        The sponge thickness is not enough to press the connector of PCMCIA slot.



        If found this issue, please replace with the new sponge.

        P/N: 345859100023 TF1-SPONGE;FPC,PCI,B300G5




                                                                             Old                                  New














                                                                                          thickness
