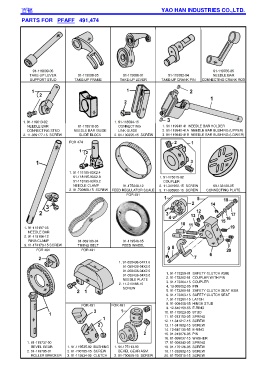

PARTS FOR PFAFF 491,474

91-119009-05 91-119765-05
TAKE-UP LEVER 91-119008-05 91-119006-01 91-119762-04 NEEDLE BAR
SUPPORT STUD TAKE-UP FRAME TAKE-UP LEVER TAKE-UP CRANK PIN CONNECTING CRANK ROD

1. 91-119013-92 1. 91-118594-15
NEEDLE BAR 91-118518-05 CONNECTING 1. 91-119940-41 NEEDLE BAR HOLDER
CONNECTING STUD NEEDLE BAR GUIDE LINK GUIDE 2. 91-119940-41A NEEDLE BAR BUSHING (UPPER)
2. 11-039177-15 SCREW SLIDE BLOCK 2. 91-100355-15 SCREW 3. 91-119940-41B NEEDLE BAR BUSHING (LOWER)
FOR 474

1. 91-118195-93X2.4
91-118195-93X2.8 1. 91-175019-92
91-118195-93X3.2 COUPLER
NEEDLE CLAMP 91-175048-12 2. 11-341902-15 SCREW 99-133109-05
2. 91-700868-15 SCREW FEED REGULATOR SCALE 3. 11-335902-15 SCREW CONNECTING PLATE
FOR 491

百福百福百福百福
1. 91-118197-05
NEEDLE BAR
2. 91-118196-12
RING CLAMP 91-069160-04 91-119546-05
3. 11-174173-15 SCREW TIMING BELT FEED WHEEL
FOR 491 FOR 491

1. 91-058436-04X1.6
91-058436-04X2.0
91-058436-04X2.5
91-058436-04X3.0 1. 91-173259-91 SAFETY CLUTCH ASM.
NEEDLE PLATE 2. 91-173262-91 COUPLER WITH PIN
3. 91-173264-15 COUPLER
2. 11-210168-15
4. 13-065052-05 PIN
SCREW
5. 91-173260-91 SAFETY CLUTCH SEAT ASM.
6. 91-173263-15 SAFETY CLUTCH SEAT
7. 91-173261-15 LATCH
8. 91-009408-05 HINGE STUD
FOR 491 FOR 491
9. 12-640150-55 E-RING
10. 91-175023-05 STUD
11. 91-013153-05 SPRING
12. 11-341217-15 SCREW
13. 11-341902-15 SCREW
14. 12-640130-55 E-RING
15. 91-013076-05 PIN
16. 91-069037-15 WASHER
1. 91-119737-00 17. 91-009343-05 SPRING
BEVEL GEAR 1. 91-119535-92 BUSHING 1. 91-175113-90 18. 91-175126-05 SCREW
2. 91-119795-01 2. 91-700785-15 SCREW BEVEL GEAR ASM. 19. 11-335902-15 SCREW
ROLLER BRACKER 3. 91-119534-05 CLUTCH 2. 91-700689-15 SCREW 20. 91-700510-15 SCREW
