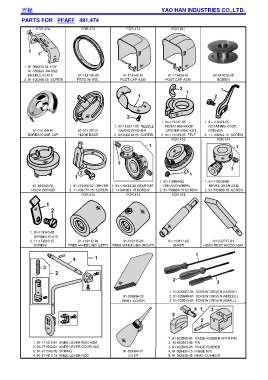

Page 507 - 2017 MASTER CATALOG

YAO HAN INDUSTRIES CO.,LTD.

PARTS FOR PFAFF 491,474

FOR 474 FOR 474 FOR 474 FOR 491

1. 91-058325-04 1/16"
91-058324 -04 3/32"
NEEDLE PLATE 91-119136-05 91-119140-91 91-119436-91 91-010079-05
2. 91-100296-25 SCREW FEED WHEEL POST CAP ASM. POST CAP ASM. BOBBIN

1. 91-119127-05 1. 91-119129-05
1. 91-119377-05 NEEDLE ROTATING HOOK ROTATING HOOK
91-010159-91 91-010157-01 GUARD WASHER OPENER BRACKET OPENER
BOBBIN CASE CAP HOOK BASE 2. 91-000219-15 SCREW 2. 91-119128-05 FELT 2. 11-108093-15 SCREW
FOR 474 FOR 474

1. 91-119494-92 1. 91-119109-90
91-165343-05 1. 91-119106-92 DRIVER 1. 91-119133-90 GEAR SET DRIVING WHEEL BEVEL GEAR ASM.
HOOK DRIVER 2. 11-108177-15 SCREW 2. 11-341901-15 SCREW 2. 91-700689-15 SCREW 2. 91-700689-15 SCREW
FOR 474 FOR 474 FOR 474

百福百福百福百福

1. 91-119143-05
SPRING PLATE
2. 11-173090-15 91-119112-91 91-119115-91 91-119111-05 91-032717-91
SCREW FREE-WHEELING (LEFT) FREE-WHEELING (RIGHT) SHAFT HEAD REST WOOD ASM.

1. 91-029007-91 SCREW DRIVER (LARGE)
91-029836-05 2. 91-029946-91 SCREW DRIVER (MIDDLE)
VINYL COVER 3. 91-129915-01 SCREW DRIVER (SMALL)

1. 91-032805-91 HINGE RUBBER WITH PIN
1. 91-171412-91 KNEE LEVER ROD ASM. 2. 13-030341-05 PIN
2. 91-171542-91 KNEE LEVER COUPLING 3. 91-032806-45 HINGE RUBBER
3. 91-171543-05 SPRING 91-029394-01 4. 91-029450-15 HINGE PIN
4. 91-171413-15 KNEE LEVER ROD OILER 5. 91-032808-45 HEAD CUSHION
