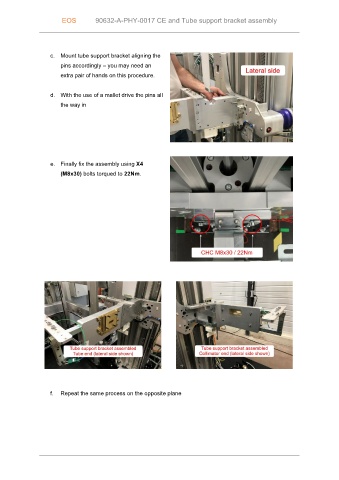

EOS 90632-A-PHY-0017 CE and Tube support bracket assembly

c. Mount tube support bracket aligning the

pins accordingly – you may need an
extra pair of hands on this procedure.

d. With the use of a mallet drive the pins all
the way in

e. Finally fix the assembly using X4
(M8x30) bolts torqued to 22Nm.

f. Repeat the same process on the opposite plane
