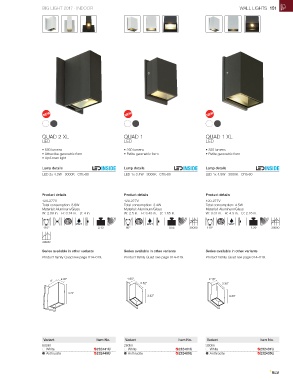

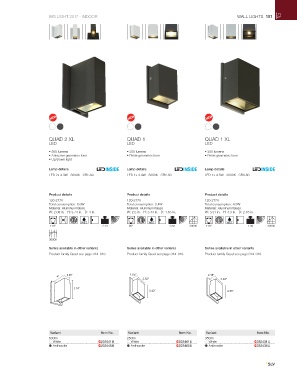

BIG LIGHT 2017 ∙ INDOOR WALL LIGHTS 151

QUAD 2 XL QUAD 1 QUAD 1 XL
LED LED LED

• 500 lumens • 250 lumens • 350 lumens
• Attractive geometric form • Petite geometric form • Petite geometric form
• Up/Down light

Lamp details Lamp details Lamp details
LED 2x 4.3W 3000K CRI>80 LED 1x 3.4W 3000K CRI>80 LED 1x 4.5W 3000K CRI>80

Product details Product details Product details
120-277V 120-277V 120-277V
Total consumption: 8.6W Total consumption: 3.4W Total consumption: 4.5W
Material: Aluminum/Glass Material: Aluminum/Glass Material: Aluminum/Glass
W: 2.08 in. H: 3.74 in. D: 4 in. W: 2.5 in. H: 3.43 in. D: 1.65 in. W: 3.31 in. H: 4.3 in. D: 2.16 in.

110° 2.13 90° 0.55 30000 110° 1.39 30000

30000
Series available in other variants Series available in other variants Series available in other variants
Product family Quad see page 014–019. Product family Quad see page 014–019. Product family Quad see page 014–019.

2.08” 1.65” 2.16”
4”
2.52” 3.30”
3.74”
3.42” 4.33”

Variant Item No. Variant Item No. Variant Item No.
500lm 250lm 350lm
White 232441U White 232461U White 232431U
Anthracite 232445U Anthracite 232465U Anthracite 232435U
