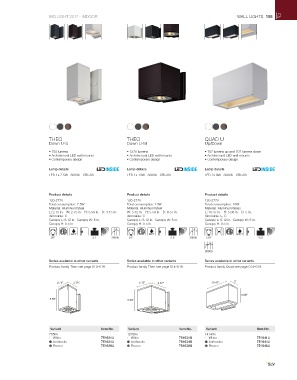

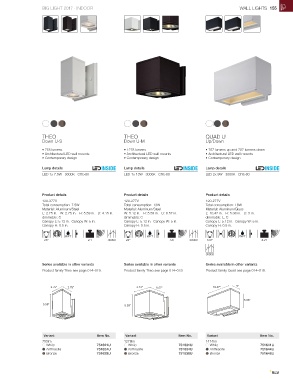

BIG LIGHT 2017 ∙ INDOOR WALL LIGHTS 155

THEO THEO QUAD U
Down U-S Down U-M Up/Down

• 755 lumens • 1278 lumens • 707 lumens up and 707 lumens down
• Architectural LED wall mounts • Architectural LED wall mounts • Architectural LED wall mounts
• Contemporary design • Contemporary design • Contemporary design

Lamp details Lamp details Lamp details
LED 1x 7.5W 3000K CRI>80 LED 1x 13W 3000K CRI>80 LED 2x 9W 3000K CRI>80

Product details Product details Product details
120-277V 120-277V 120-277V
Total consumption: 7.5W Total consumption: 13W Total consumption: 18W
Material: Aluminum/Steel Material: Aluminum/Steel Material: Aluminum/Glass
L: 2.75 in. W: 2.75 in. H: 5.59 in. D: 4.15 in. W: 5.12 in. H: 5.59 in. D: 6.57 in. L: 10.47 in. H: 5.08 in. D: 5 in.
dimmable: C dimmable: C dimmable: L, C
Canopy L: 5.12 in. Canopy W: 5 in. Canopy L: 5.12 in. Canopy W: 5 in. Canopy L: 5.12 in. Canopy W: 5 in.
Canopy H: 0.5 in. Canopy H: 0.5 in. Canopy H: 0.5 in.

28° 2.1 36000 24° 3.6 30000 120° 4.21

30000
Series available in other variants Series available in other variants Series available in other variants
Product family Theo see page 014–019. Product family Theo see page 014–019. Product family Quad see page 014–019.

2.75” 2.75” 5.12” 6.57” 10.47” 5”

5.08”
5.59” 5.59”

Variant Item No. Variant Item No. Variant Item No.
755lm 1278lm 1414lm
White 751621U White 751631U White 751641U
Anthracite 751624U Anthracite 751634U Anthracite 751644U
Bronze 751628U Bronze 751638U Bronze 751648U
