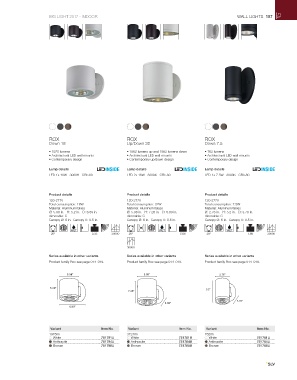

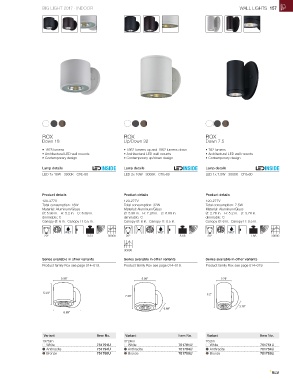

BIG LIGHT 2017 ∙ INDOOR WALL LIGHTS 157

ROX ROX ROX
Down 18 Up/Down 32 Down 7.5

• 1975 lumens • 1862 lumens up and 1862 lumens down • 762 lumens
• Architectural LED wall mounts • Architectural LED wall mounts • Architectural LED wall mounts
• Contemporary design • Contemporary up/down design • Contemporary design

Lamp details Lamp details Lamp details
LED 1x 18W 3000K CRI>80 LED 2x 16W 3000K CRI>80 LED 1x 7.5W 3000K CRI>80

Product details Product details Product details
120-277V 120-277V 120-277V
Total consumption: 18W Total consumption: 32W Total consumption: 7.5W
Material: Aluminum/Glass Material: Aluminum/Glass Material: Aluminum/Glass
Ø: 5.98 in. H: 5.2 in. D: 6.89 in. Ø: 5.98 in. H: 7.28 in. D: 6.89 in. Ø: 2.76 in. H: 5.2 in. D: 3.78 in.
dimmable: C dimmable: C dimmable: C
Canopy Ø: 6 in. Canopy H: 0.5 in. Canopy Ø: 6 in. Canopy H: 0.5 in. Canopy Ø: 6 in. Canopy H: 0.5 in.

20° 3.33 30000 20° 5.68 28° 1.68 30000

30000
Series available in other variants Series available in other variants Series available in other variants
Product family Rox see page 014–019. Product family Rox see page 014–019. Product family Rox see page 014–019.

5.98” 5.98” 2.76”

5.20” 5.2”
7.28”

3.78”
6.89”
6.89”

Variant Item No. Variant Item No. Variant Item No.
1975lm 3724lm 762lm
White 751791U White 751781U White 751751U
Anthracite 751794U Anthracite 751784U Anthracite 751754U
Bronze 751798U Bronze 751788U Bronze 751758U
