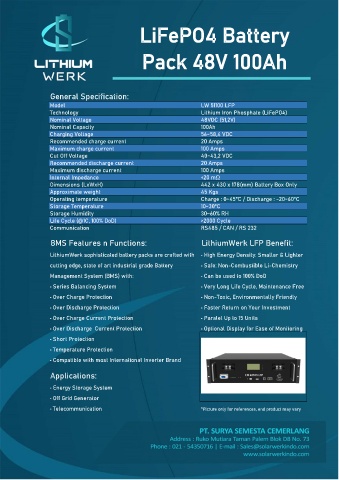

LiFePO4 Battery

Pack 48V 100Ah

General Specification:
Model LW 51100 LFP
Technology Lithium Iron Phosphate (LiFePO4)
Nominal Voltage 48VDC (51,2V)
Nominal Capacity 100Ah
Charging Voltage 56~58,4 VDC
Recommended charge current 20 Amps
Maximum charge current 100 Amps
Cut Off Voltage 40~43,2 VDC
Recommended discharge current 20 Amps
Maximum discharge current 100 Amps
Internal Impedance <20 mΩ
Dimensions (LxWxH) 442 x 430 x 178(mm) Battery Box Only
Approximate weight 45 Kgs
Operating temperature Charge : 0~45°C / Discharge : -20~60°C
Storage Temperature 10~30°C
Storage Humidity 30~60% RH
Life Cycle (@1C, 100% DoD) >2000 Cycle
Communication RS485 / CAN / RS 232

BMS Features n Functions: LithiumWerk LFP Benefit:

LithiumWerk sophisticated battery packs are crafted with • High Energy Density: Smaller & Lighter
cutting edge, state of art industrial grade Battery • Safe: Non-Combustible Li-Chemistry

Management System (BMS) with: • Can be used to 100% DoD
• Series Balancing System • Very Long Life Cycle, Maintenance Free
• Over Charge Protection • Non-Toxic, Environmentally Friendly

• Over Discharge Protection • Faster Return on Your Investment
• Over Charge Current Protection • Paralel Up to 15 Units
• Over Discharge Current Protection • Optional Display for Ease of Monitoring

• Short Protection
• Temperature Protection
• Compatible with most International Inverter Brand

Applications:

• Energy Storage System
• Off Grid Generator

• Telecommunication *Picture only for references, end product may vary
