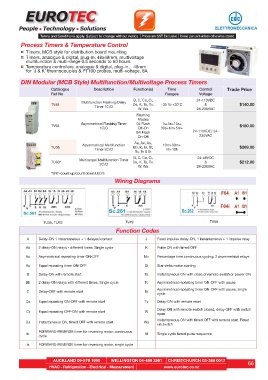

Page 67 - Eurotec-Ltd-Price-Book-2017-2018-Online

Terms and Conditions apply. Subject to change without notice Prices are GST Exclusive Items per unit unless otherwise stated
Process Timers & Temperature Control

¤ Timers, MCB style for distribution board mounting
¤ Timers, analogue & digital, plug-in, 48x48mm, multivoltage
multifunction & multi-range 0.5 seconds to 60 hours
¤ Temperature controllers, analogue & digital, plug-in, ̴ 48mm
for ‘J & K’ thermocouples & PT100 probes, multi-voltage, 8A

DIN Modular (MCB Style) Multifunction/Multivoltage Process Timers
Catalogue Description Function(s) Time Control Trade Price
Ref No Ranges Voltage
B, C, Ca, Ci, 24-110VDC
Multifunction Flashing/Delay
TV49 Da, K, Ta, Tv, -35 To +30°C & $140.00
Timer 1C/O
W, Wa 24-230VAC
Flashing
Modes
Asymmetrical Flashing Timer 04 Flash 1s+5s+10s+
TV56 $180.00
1C/O Off-On 30s+1m+5m+
04i Flash 24-110VDC/ 24-
On-Off 230VAC
Aa, Ac, As,
Asymmetrical Multifunction 10m+30m+
TU56 Bb, Ic, Is, St, $269.00
Timer 2C/O 1h+10h
Tc, Ts & Xt
B, C, Ca, Ci, 24-48VDC
Multirange/ Multifunction Timer
TU93* Da, K, Ta, Tv, & $212.00
2C/O
W, Wa 24-230VAC
*With count up/count down LED’s
Wiring Diagrams

TU56, TU93 TV49 TV56
Function Codes

A Delay-ON 1 instantaneous + 1 delayed contact J Fixed impulse delay-ON, 1 instantaneous + 1 impulse relay
Aa 2 delay-ON relays - different times. Single cycle K Pulse ON with timed OFF
Ac Asymmetrical repeating timer ON-OFF Mv Percentage time continuous cycling, 2 asymmetrical relays

As Equal repeating timer ON-OFF St Star-delta motor starting
B Delay-ON with remote start Ta Instantaneous ON with close of remote switch or power ON

Bb 2 delay-ON relays with different times. Single cycle Tc Asymmetrical repeating timer ON-OFF with pause
Asymmetrical repeating timer ON-OFF with pause, single
C Delay-OFF with remote start Ts
cycle
Ca Equal repeating ON-OFF with remote start Tv Delay-ON with remote reset
Delay ON with remote switch closed, delay OFF with switch
Ci Equal repeating OFF-ON with remote start W
open
Instantaneous ON with timed OFF with remote start. Reset
Da Instantaneous ON, timed OFF with remote start Wa
via switch
FORWARD-REVERSE timer for reversing motor, continuous
Ic Xt Single cycle timed pulse sequence
cycle
Is FORWARD-REVERSE timer for reversing motor, single cycle
