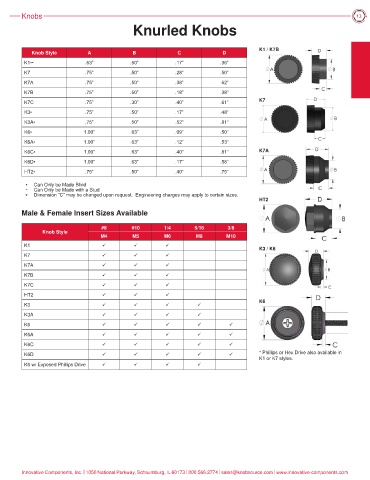

Knobs 13
Knurled Knobs

K1 / K7B
Knob Style A B C D
K1•- .63” .50” .17” .36”
K7 .75” .50” .28” .50”
K7A .75” .50” .38” .62”
K7B .75” .50” .18” .38”
K7C .75” .30” .40” .61” K7
K3• .75” .50” .17” .48”
K3A• .75” .50” .52” .81”
K6• 1.00” .63” .09” .50”

K6A• 1.00” .63” .12” .53”
K6C• 1.00” .63” .40” .81” K7A
K6D• 1.00” .63” .17” .58”
HT2• .75” .50” .40” .75”
• Can Only be Made Blind
- Can Only be Made with a Stud
* Dimension “C” may be changed upon request. Engineering charges may apply to certain sizes. HT2

Male & Female Insert Sizes Available

#8 #10 1/4 5/16 3/8
Knob Style
M4 M5 M6 M8 M10
K1 ü ü ü
K3 / K6
K7 ü ü ü
K7A ü ü ü
K7B ü ü ü
K7C ü ü ü
HT2 ü ü ü
K6
K3 ü ü ü ü
K3A ü ü ü ü
K6 ü ü ü ü ü
K6A ü ü ü ü ü
K6C ü ü ü ü ü
K6D ü ü ü ü ü * Phillips or Hex Drive also available in
K1 or K7 styles.
K6 w/ Exposed Phillips Drive ü ü ü ü
