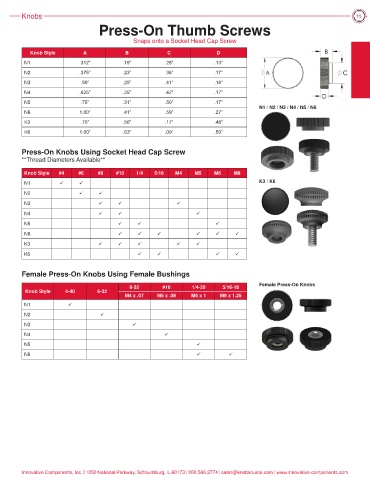

Page 15 - Catalog_Digital_07.08.19

Knobs 15
Press-On Thumb Screws

Snaps onto a Socket Head Cap Screw
Knob Style A B C D
N1 .312” .19” .28” .13”
N2 .375” .23” .36” .17”
N3 .50” .25” .41” .18”
N4 .625” .25” .42” .17”
N5 .75” .31” .50” .17”
N1 / N2 / N3 / N4 / N5 / N6
N6 1.00” .41” .59” .27”
K3 .75” .50” .17” .48”
K6 1.00” .63” .09” .50”

Press-On Knobs Using Socket Head Cap Screw
**Thread Diameters Available**

Knob Style #4 #6 #8 #10 1/4 5/16 M4 M5 M6 M8
N1 ü ü K3 / K6
N2 ü ü
N3 ü ü ü
N4 ü ü ü
N5 ü ü ü

N6 ü ü ü ü ü ü
K3 ü ü ü ü ü
K6 ü ü ü ü

Female Press-On Knobs Using Female Bushings
8-32 #10 1/4-20 5/16-18 Female Press-On Knobs
Knob Style 4-40 6-32
M4 x .07 M5 x .08 M6 x 1 M8 x 1.25
N1 ü
N2 ü
N3 ü
N4 ü
N5 ü
N6 ü ü
