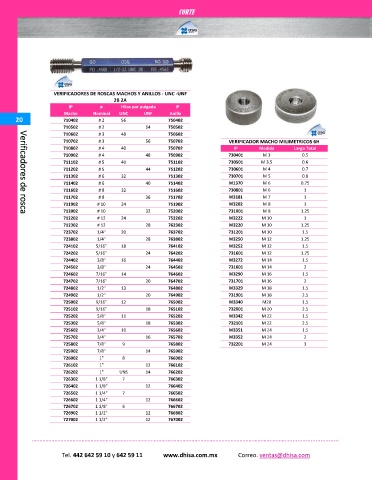

Page 21 - Catalogo DHISA 2020-2021

CORTE

Gustavo

VERIFICADORES DE ROSCAS MACHOS Y ANILLOS - UNC -UNF
2B 2A
IP ø Hilos por pulgada IP
Macho Nominal UNC UNF Anillo
20 710402 # 2 56 750402
710502 # 2 64 750502
710602 # 3 48 750602
710702 # 3 56 750702 VERIFICADOR MACHO MILIMETRICOS 6H
710802 # 4 40 750702 IP Medida Largo Total
710902 # 4 48 750902 730401 M 3 0.5
711102 # 5 40 751102 730501 M 3.5 0.6
711202 # 5 44 751202 730601 M 4 0.7
711302 # 6 32 751302 730701 M 5 0.8
711402 # 6 40 751402 M1370 M 6 0.75
711602 # 8 32 751602 730801 M 6 1
711702 # 8 36 751702 M3181 M 7 1
711902 # 10 24 751902 M3202 M 8 1
712002 # 10 32 752002 731001 M 8 1.25
712202 # 12 24 752202 M3222 M 10 1
Verificadores de rosca
712302 # 12 28 762302 M3220 M 10 1.25
723702 1/4" 20 763702 731201 M 10 1.5
723802 1/4" 28 763802 M3250 M 12 1.25
724102 5/16" 18 764102 M3252 M 12 1.5
724202 5/16" 24 764202 731601 M 12 1.75
724402 3/8" 16 764402 M3272 M 14 1.5
724502 3/8" 24 764502 731601 M 14 2
724602 7/16" 14 764602 M3290 M 16 1.5
724702 7/16" 20 764702 731701 M 16 2
724802 1/2" 13 764802 M3329 M 18 1.5
724902 1/2" 20 764902 731901 M 18 2.5
725002 9/16" 12 765002 M3340 M20 1.5
725102 9/16" 18 765102 732001 M 20 2.5
725202 5/8" 11 765202 M3342 M 22 1.5
725302 5/8" 18 765302 732101 M 22 2.5
725602 3/4" 10 765602 M3351 M 24 1.5
725702 3/4" 16 765702 M3352 M 24 2
725802 7/8" 9 765802 732201 M 24 3

725902 7/8" 14 765902
726002 1" 8 766002
726102 1" 12 766102
726202 1" UNS 14 766202
726302 1 1/8" 7 766302
726402 1 1/8" 12 766402
726502 1 1/4" 7 766502
726602 1 1/4" 12 766602
726702 1 3/8" 6 766702
726902 1 1/2" 12 766802
727002 1 1/2" 12 767002

………………………………………………………………………………………………………………………………………………………..............................

Tel. 442 642 59 10 y 642 59 11 www.dhisa.com.mx Correo. ventas@dhisa.com
