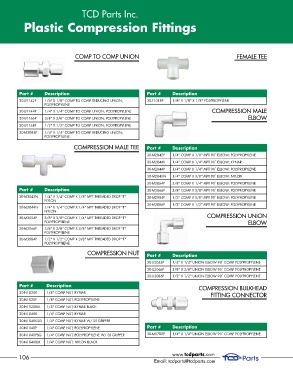

Page 107 - TCD Catalog 2017

TCD Parts Inc.

Plastic Compression Fittings

COMP TO COMP UNION FEMALE TEE

Part # Description Part # Description
30-U1142P 1/4" X 1/8" COMP TO COMP REDUCING UNION; 30-F1018P 1/8" X 1/8" X 1/8" POLYPROPYLENE
POLYPROPYLENE
30-U1144P 1/4" X 1/4" COMP TO COMP UNION; POLYPROPYLENE COMPRESSION MALE
30-U1166P 3/8" X 3/8" COMP TO COMP UNION; POLYPROPYLENE ELBOW
30-U1168P 1/2" X 1/2" COMP TO COMP UNION; POLYPROPYLENE
30-M3084P 1/4" X 1/4" COMP TO COMP REDUCING UNION;
POLYPROPYLENE
COMPRESSION MALE TEE Part # Description

30-M2042P 1/4" COMP X 1/8" MPT 90˚ ELBOW; POLYPROPYLENE
30-M2044K 1/4" COMP X 1/4" MPT 90˚ ELBOW; KYNAR
30-M2044P 1/4" COMP X 1/4" MPT 90˚ ELBOW; POLYPROPYLENE
30-M2046N 1/4" COMP X 3/8" MPT 90˚ ELBOW; NYLON
30-M2064P 3/8" COMP X 1/4" MPT 90˚ ELBOW; POLYPROPYLENE
Part # Description 30-M2066P 3/8" COMP X 3/8" MPT 90˚ ELBOW; POLYPROPYLENE
30-M3042N 1/4" X 1/4" COMP X 1/8" MPT THREADED DROP "T" 30-M2084P 1/2" COMP X 3/8" MPT 90˚ ELBOW; POLYPROPYLENE
NYLON
30-M2086P 1/2" COMP X 1/2" MPT 90˚ ELBOW; POLYPROPYLENE
30-M3044N 1/4" X 1/4" COMP X 1/4" MPT THREADED DROP "T"
NYLON
30-M3054P 3/8" X 3/8" COMP X 1/4" MPT THREADED DROP "T" COMPRESSION UNION
POLYPROPYLENE ELBOW
30-M3066P 3/8" X 3/8" COMP X 3/8" MPT THREADED DROP "T"
POLYPROPYLENE
30-M3084P 1/2" X 1/2" COMP X 3/8" MPT THREADED DROP "T"
POLYPROPYLENE
COMPRESSION NUT Part # Description

30-U2044P 1/4" X 1/4" UNION ELBOW 90˚ COMP POLYPROPYLENE
30-U2066P 3/8" X 3/8" UNION ELBOW 90˚ COMP POLYPROPYLENE
30-U2086P 1/2" X 1/2" UNION ELBOW 90˚ COMP POLYPROPYLENE

Part # Description COMPRESSION BULKHEAD
30-N1020K 1/8" COMP NUT; KYNAR
FITTING CONNECTOR
30-N1020P 1/8" COMP NUT; POLYPROPYLENE
30-N1020BLK 1/8" COMP NUT; KYNAR BLACK
30-N1040K 1/4" COMP NUT; KYNAR
30-N1040KSG 1/4" COMP NUT; KYNAR W/ SS GRIPPER
30-N1040P 1/4" COMP NUT; POLYPROPYLENE Part # Description
30-N1040PSG 1/4" COMP NUT; POLYPROPYLENE W/ SS GRIPPER 30-M1700P 1/4" X 1/4" UNION ELBOW 90˚ COMP POLYPROPYLENE
30-N1040BLK 1/4" COMP NUT; NYLON BLACK

106 www.tcdparts.com
Email: tcdparts@tcdparts.com
