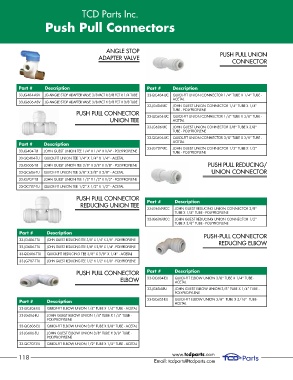

TCD Parts Inc.

Push Pull Connectors

ANGLE STOP
ADAPTER VALVE PUSH PULL UNION
CONNECTOR

Part # Description Part # Description
33-JG404-ASV JG ANGLE STOP ADAPTER VALVE 3/8 MCT X 3/8 FCT X 1/4 TUBE 33-QC404-UC QUICK-FIT UNION CONNECTOR 1/4” TUBE X 1/4” TUBE -
ACETAL
33-JG606-ASV JG ANGLE STOP ADAPTER VALVE 3/8 MCT X 3/8 FCT X 3/8 TUBE
33-JG404-UC JOHN GUEST UNION CONNECTOR 1/4” TUBE X 1/4”
TUBE - POLYPROPLENE
PUSH PULL CONNECTOR 33-QC604-UC QUICK-FIT UNION CONNECTOR 1/4” TUBE X 3/8” TUBE -
UNION TEE ACETAL
33-JG606-UC JOHN GUEST UNION CONNECTOR 3/8” TUBE X 3/8”
TUBE - POLYPROPLENE
33-QC606-UC QUICK-FIT UNION CONNECTOR 3/8” TUBE X 3/8” TUBE -
Part # Description ACETAL
33-JG707-UC JOHN GUEST UNION CONNECTOR 1/2” TUBE X 1/2”
33-JG404-TU JOHN GUEST UNION TEE 1/4” X 1/4” X 1/4” - POLYPROPLENE TUBE - POLYPROPLENE
33-QC404-TU QUICK-FIT UNION TEE 1/4” X 1/4” X 1/4” - ACETAL
33-JG606-TU JOHN GUEST UNION TEE 3/8” X 3/8” X 3/8” - POLYPROPLENE PUSH PULL REDUCING/
33-QC606-TU QUICK-FIT UNION TEE 3/8” X 3/8” X 3/8” - ACETAL UNION CONNECTOR
33-JG707-TU JOHN GUEST UNION TEE 1/2” X 1/2” X 1/2” - POLYPROPLENE
33-QC707-TU QUICK-FIT UNION TEE 1/2” X 1/2” X 1/2” - ACETAL

PUSH PULL CONNECTOR Part # Description
REDUCING UNION TEE
33-JG604-UCC JOHN GUEST REDUCING UNION CONNECTOR 3/8”
TUBE X 1/4” TUBE - POLYPROPLENE
33-JG606-UCC JOHN GUEST REDUCING UNION CONNECTOR 1/2”
TUBE X 3/8” TUBE - POLYPROPLENE
Part # Description PUSH-PULL CONNECTOR
33-JG406-TTU JOHN GUEST REDUCING TEE 3/8” X 1/4” X 3/8” - POLYPROPLENE
REDUCING ELBOW
33-JG606-TTU JOHN GUEST REDUCING TEE 3/8” X 3/8” X 1/4” - POLYPROPLENE
33-QC606-TTU QUICK-FIT REDUCING TEE 3/8” X 3/8” X 1/4” - ACETAL
33-JG707-TTU JOHN GUEST REDUCING TEE 1/2” X 1/2” X 3/8” - POLYPROPLENE

PUSH PULL CONNECTOR Part # Description
ELBOW 33-QC604-EU QUICK-FIT ELBOW UNION 3/8” TUBE X 1/4” TUBE -
ACETAL
33-JG604-EU JOHN GUEST ELBOW UNION 3/8” TUBE X 1/4” TUBE -
POLYPROPYLENE
Part # Description 33-QC605-EU QUICK-FIT ELBOW UNION 3/8” TUBE X 5/16” TUBE-
ACETAL
33-QC404-EU QUICK-FIT ELBOW UNION 1/4” TUBE X 1/4” TUBE - ACETAL
33-JG404-EU JOHN GUEST ELBOW UNION 1/4” TUBE X 1/4” TUBE -
POLYPROPYLENE
33-QC606-EU QUICK-FIT ELBOW UNION 3/8” TUBE X 3/8” TUBE - ACETAL
33-JG606-EU JOHN GUEST ELBOW UNION 3/8” TUBE X 3/8” TUBE -
POLYPROPYLENE
33-QC707-EU QUICK-FIT ELBOW UNION 1/2” TUBE X 1/2” TUBE - ACETAL
