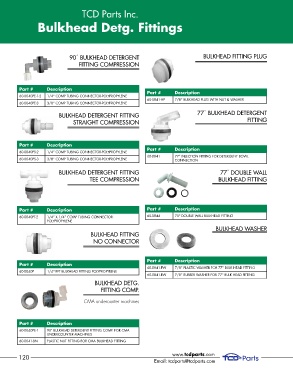

Page 121 - TCD Catalog 2017

TCD Parts Inc.

Bulkhead Detg. Fittings

90˚ BULKHEAD DETERGENT BULKHEAD FITTING PLUG
FITTING COMPRESSION

Part # Description
Part # Description
60-0040PE-1-2 1/4” COMP TUBING CONNECTOR-POLYPROPYLENE
60-0041-HP 7/8” BULKHEAD PLUG WITH NUT & WASHER
60-0040PE-3 3/8” COMP TUBING CONNECTOR-POLYPROPYLENE

BULKHEAD DETERGENT FITTING 77˚ BULKHEAD DETERGENT
STRAIGHT COMPRESSION FITTING

Part # Description
Part # Description
60-0040PS-2 1/4” COMP TUBING CONNECTOR-POLYPROPYLENE
60-0041 77° INJECTION FITTING FOR DETERGENT BOWL
60-0040PS-3 3/8” COMP TUBING CONNECTOR-POLYPROPYLENE CONNECTION

BULKHEAD DETERGENT FITTING 77˚ DOUBLE WALL
TEE COMPRESSION BULKHEAD FITTING

Part # Description Part # Description
60-0040PT-2 1/4” X 1/4” COMP TUBING CONNECTOR- 60-0044 70° DOUBLE WALL BULKHEAD FITTING
POLYPROPYLENE
BULKHEAD WASHER
BULKHEAD FITTING
NO CONNECTOR

Part # Description
Part # Description
60-0041-PW 7/8” PLASTIC WASHER FOR 77° BULK HEAD FITTING
60-0040P 1/4" FPT BULKHEAD FITTING POLYPROPYLENE
60-0041-RW 7/8” RUBBER WASHER FOR 77° BULK HEAD FITTING
BULKHEAD DETG.
FITTING COMP.

CMA underounter machines

Part # Description
60-0040PE-1 90˚ BULKHEAD DETERGENT FITTING COMP. FOR CMA
UNDERCOUNTER MACHINES
60-0041-BN PLASTIC NUT FITTING FOR CMA BULKHEAD FITTING
