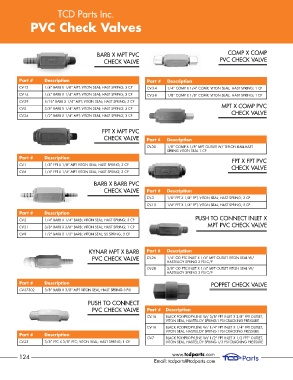

Page 125 - TCD Catalog 2017

TCD Parts Inc.

PVC Check Valves

BARB X MPT PVC COMP X COMP
CHECK VALVE PVC CHECK VALVE

Part # Description Part # Description
CV-12 1/4” BARB X 1/8” MPT; VITON SEAL; HAST SPRING; 3 CP CV-3-4 1/4” COMP X 1/4” COMP; VITON SEAL; HAST SPRING; 1 CP
CV-14 1/4” BARB X 1/4” MPT; VITON SEAL; HAST SPRING; 3 CP CV-3-8 1/8” COMP X 1/8” COMP; VITON SEAL; HAST SPRING; 1 CP
CV-29 5/16” BARB X 1/4” MPT; VITON SEAL; HAST SPRING; 3 CP
MPT X COMP PVC
CV-5 3/8” BARB X 1/4” MPT; VITON SEAL; HAST SPRING; 3 CP
CHECK VALVE
CV-24 1/2” BARB X 1/4” MPT; VITON SEAL; HAST SPRING; 3 CP

FPT X MPT PVC
CHECK VALVE Part # Description

CV-30 1/8” COMP X 1/8” MPT OUTLET W/ TEFLON BALL-HAST
SPRING VITON SEAL 1 CP
Part # Description FPT X FPT PVC
CV-1 1/8” FPT X 1/8” MPT VITON SEAL; HAST SPRING; 3 CP
CHECK VALVE
CV-6 1/4” FPT X 1/4” MPT VITON SEAL; HAST SPRING; 3 CP

BARB X BARB PVC
CHECK VALVE Part # Description
CV-3 1/8” FPT X 1/8” FPT; VITON SEAL; HAST SPRING; 3 CP
CV-13 1/4” FPT X 1/4” FPT; VITON SEAL; HAST SPRING; 3 CP
Part # Description
CV-2 1/4” BARB X 1/4” BARB; VITON SEAL; HAST SPRING; 3 CP PUSH TO CONNECT INLET X
MPT PVC CHECK VALVE
CV-21 3/8” BARB X 3/8” BARB; VITON SEAL; HAST SPRING; 1 CP
CV-9 1/2” BARB X 1/2” BARB; VITON SEAL; SS SPRING; 3 CP

KYNAR MPT X BARB Part # Description
PVC CHECK VALVE CV-26 1/4” OD PTC INLET X 1/4” MPT OUTLET VITON SEAL W/
HASTELLOY SPRING 3 PSI C/P
CV-28 3/8” OD PTC INLET X 1/4” MPT OUTLET VITON SEAL W/
HASTELLOY SPRING 3 PSI C/P

Part # Description POPPET CHECK VALVE
CV-37502 3/8” BARB X 3/8” MPT VITON SEAL; HAST SPRING 3 PSI

PUSH TO CONNECT
PVC CHECK VALVE Part # Description
CV-15 BLACK POLYPROPYLENE W/ 3/8” FPT INLET X 3/8” FPT OUTLET,
VITON SEAL, HASTELLOY SPRING-1 PSI CRACKING PRESSURE
CV-16 BLACK POLYPROPYLENE W/ 1/4” FPT INLET X 1/4” FPT OUTLET,
VITON SEAL, HASTELLOY SPRING-1 PSI CRACKING PRESSURE
Part # Description
CV-7 BLACK POLYPROPYLENE W/ 1/2” FPT INLET X 1/2 FPT” OUTLET,
CV-22 3/8” PTC X 3/8” PTC; VITON SEAL; HAST SPRING; 1 CP VITON SEAL, HASTELLOY SPRING-1/3 PSI CRACKING PRESSURE

124 www.tcdparts.com
