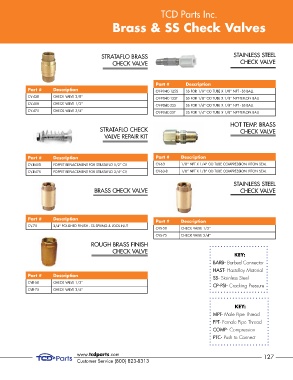

Page 128 - TCD Catalog 2017

TCD Parts Inc.

Brass & SS Check Valves

STRATAFLO BRASS STAINLESS STEEL
CHECK VALVE CHECK VALVE

Part # Description
Part # Description CV-904C-125S SS FOR 1/8” OD TUBE X 1/8” NPT - SS BALL
CV-438 CHECK VALVE 3/8” CV-904C-125T SS FOR 1/8” OD TUBE X 1/8” NPT-TEFLON BALL
CV-450 CHECK VALVE 1/2” CV-904C-25S SS FOR 1/4” OD TUBE X 1/8” NPT - SS BALL
CV-475 CHECK VALVE 3/4”
CV-904C-25T SS FOR 1/4” OD TUBE X 1/8” NPT-TEFLON BALL

HOT TEMP. BRASS
STRATAFLO CHECK CHECK VALVE
VALVE REPAIR KIT

Part # Description Part # Description
CV-R450 POPPET REPLACEMENT FOR STRATAFLO 1/2” CV CV-63 1/8” NPT X 1/4” OD TUBE COMPRESSION VITON SEAL
CV-R475 POPPET REPLACEMENT FOR STRATAFLO 3/4” CV CV-63-8 1/8” NPT X 1/8” OD TUBE COMPRESSION VITON SEAL

STAINLESS STEEL
BRASS CHECK VALVE CHECK VALVE

Part # Description
Part # Description
CV-75 3/4” POLISHED FINISH - SS SPRING & LOCK NUT
CVS-50 CHECK VALVE 1/2”
CVS-75 CHECK VALVE 3/4”
ROUGH BRASS FINISH
CHECK VALVE
KEY:
BARB- Barbed Connector
HAST- Hastelloy Material
Part # Description SS- Stainless Steel
CVR-50 CHECK VALVE 1/2”
CP-PSI- Cracking Pressure
CVR-75 CHECK VALVE 3/4”

KEY:
MPT- Male Pipe Thread
FPT- Female Pipe Thread
COMP- Compression
PTC- Push to Connect
