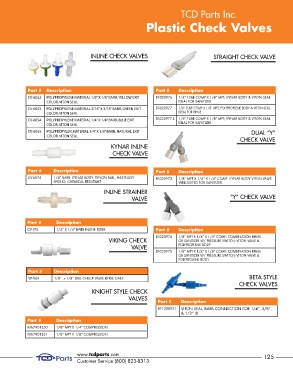

Page 126 - TCD Catalog 2017

TCD Parts Inc.

Plastic Check Valves

INLINE CHECK VALVES STRAIGHT CHECK VALVE

Part # Description Part # Description
CV-6052 POLYPROPYLENE MATERIAL 1/8” X 1/8” BARB, YELLOW EXIT BT-020976 1/4” TUBE COMP X 1/8” MPT; KYNAR BODY & VITON SEAL.
COLOR, VITON SEAL IDEAL FOR SANITIZER
CV-6053 POLYPROPYLENE MATERIAL 3/16” X 3/16” BARB, GREEN EXIT BT-020977 1/8” TUBE COMP X 1/8” MPT; POLYPROPLENE BODY & VITON SEAL.
COLOR, VITON SEAL IDEAL FOR RINSE
CV-6054 POLYPROPYLENE MATERIAL 1/4” X 1/4” BARB, BLUE EXIT BT-020977-K 1/8” TUBE COMP X 1/8” MPT; KYNAR BODY & VITON SEAL.
COLOR, VITON SEAL IDEAL FOR SANITIZER
CV-6055 POLYPROPYLEN MATERIAL 1/4” X 3/8” BARB, NATURAL EXIT DUAL “Y”
COLOR, VITON SEAL
CHECK VALVE
KYNAR INLINE
CHECK VALVE

Part # Description Part # Description
CV-6074 1/4” BARB, KYNAR BODY, TEFLON BALL, HASTELLOY BT-020973 1/8” MPT X 1/4” X 1/4” COMP KYNAR BODY VITON VALVE.
SPRING; CHEMICAL RESISTANT WELL-SUITED FOR SANITIZER.
INLINE STRAINER
VALVE “Y” CHECK VALVE

Part # Description
CV-1PS 1/4” X 1/4” BARB INLINE FILTER Part # Description
BT-020974 1/8” MPT X 1/4” X 1/4” COMP; COMBINATION RINSE
VIKING CHECK OR SANITIZER W/ PRESSURE SWITCH; VITON VALVE &
VALVE POLYPROPLENE BODY
BT-020975 1/8” MPT X 1/4” X 1/8” COMP; COMBINATION RINSE
OR SANITIZER W/ PRESSURE SWITCH; VITON VALVE &
POLYPROLENE BODY

Part # Description
VK-V69 1/8” x 1/8” BALL CHECK VALVE RINSE ONLY BETA STYLE
CHECK VALVES
KNIGHT STYLE CHECK
VALVES
Part # Description
BT-1200931 VITON SEAL, BARB CONNECTION FOR 1/4”, 3/8”,
& 1/2” ID
Part # Description
KM-7901350 1/8” MPT X 1/4” COMPRESSION
KM-7901351 1/8” MPT X 1/8” COMPRESSION
