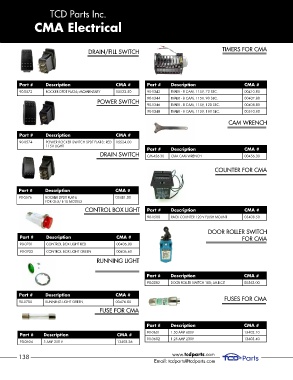

Page 139 - TCD Catalog 2017

TCD Parts Inc.

CMA Electrical

DRAIN/FILL SWITCH TIMERS FOR CMA

Part # Description CMA # Part # Description CMA #
90-0572 ROCKER DPDT FLAT-6; MOMENTARY 15523.50 90-1342 TIMER - 8 CAM, 115V, 72 SEC. 00410.80
90-1344 TIMER - 8 CAM, 115V, 90 SEC. 00407.80
POWER SWITCH
90-1346 TIMER - 8 CAM, 115V, 120 SEC. 00408.80
90-1348 TIMER - 8 CAM, 115V, 180 SEC. 00510.80

CAM WRENCH

Part # Description CMA #
90-0574 POWER ROCKER SWITCH SPDT FLAT-3; RED 15524.00
115V LIGHT
Part # Description CMA #
DRAIN SWITCH CM-456-30 CMA CAM WRENCH 00456.30

COUNTER FOR CMA

Part # Description CMA #
90-0576 ROCKER DPDT FLAT-6 03481.00
FOR GL-X/ L-1X MODELS
CONTROL BOX LIGHT Part # Description CMA #
90-1508 RACK COUNTER 120 V FLUSH MOUNT 03408.50

DOOR ROLLER SWITCH
Part # Description CMA # FOR CMA
90-0701 CONTROL BOX LIGHT RED 00406.00
90-0703 CONTROL BOX LIGHT GREEN 00406.60
RUNNING LIGHT

Part # Description CMA #
90-0582 DOOR ROLLER SWITCH 180; AH-B-C-E 00562.00

Part # Description CMA # FUSES FOR CMA
90-0705 RUNNING LIGHT GREEN 00476.00
FUSE FOR CMA

Part # Description CMA #
90-0601 1.50 AMP 600V 13402.10
Part # Description CMA #
90-0602 1.25 AMP 230V 13403.40
90-0604 3 AMP 250 V 13403.26
