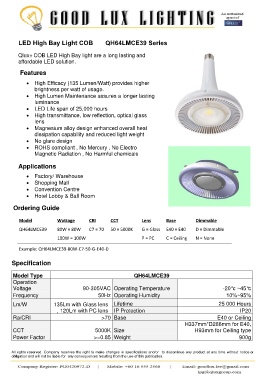

Page 33 - Good Lux Lighting Product Listings

LED High Bay Light COB QH64LMCE39 Series

Qlux+ COB LED High Bay light are a long lasting and
affordable LED solution.

Features

 High Efficacy (135 Lumen/Watt) provides higher
brightness per watt of usage.
 High Lumen Maintenance assures a longer lasting
luminance
 LED Life span of 25,000 hours
 High transmittance, low reflection, optical glass
lens
 Magnesium alloy design enhanced overall heat
dissipation capability and reduced light weight
 No glare design
 ROHS compliant , No Mercury , No Electro
Magnetic Radiation , No Harmful chemicals

Applications

 Factory/ Warehouse
 Shopping Mall
 Convention Centre
 Hotel Lobby & Ball Room

Ordering Guide

Model
Wattage CRI CCT Lens Base Dimmable
80W = 80W C7 = 70 50 = 5000K G = Glass E40 = E40 D = Dimmable
QH64LMCE39
100W = 100W P = PC C = Ceiling N = None

Example: QH64LMCE39‐80W‐C7‐50‐G‐E40‐D

Specification

Model Type QH64LMCE39
Operation
Voltage 90-305VAC Operating Temperature -20°c ~45°c
Frequency 50Hz Operating Humidity 10%~95%

Lm/W 135Lm with Glass lens Lifetime 25 000 Hours
, 120Lm with PC lens IP Protection IP20
Ra/CRI >70 Base E40 or Ceiling
H337mm*D286mm for E40,
CCT 5000K Size H93mm for Ceiling type
Power Factor >=0.85 Weight 900g

All rights reserved. Company reserves the right to make changes in specifications and/or to discontinue any product at any time without notice or
obligation and will not be liable for any consequences resulting from the use of this uppublication.
