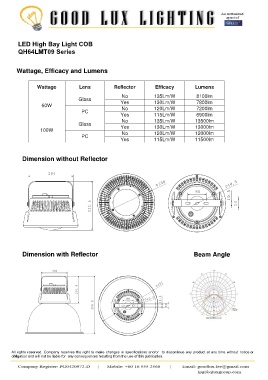

LED High Bay Light COB
         QH64LMT09 Series




        Wattage, Efficacy and Lumens


                  Wattage           Lens            Reflector         Efficacy          Lumens

                                                       No            135Lm/W            8100lm
                                    Glass              Yes           130Lm/W            7800lm
                    60W                                No            120Lm/W            7200lm
                                     PC
                                                       Yes           115Lm/W            6900lm
                                                       No            135Lm/W            13500lm
                                    Glass
                   100W                                Yes           130Lm/W            13000lm
                                                                                        12000lm
                                                                     120Lm/W
                                                       No
                                     PC
                                                       Yes           115Lm/W            11500lm

           Dimension without Reflector
























           Dimension with Reflector                                                    Beam Angle
