CONSTRUCT

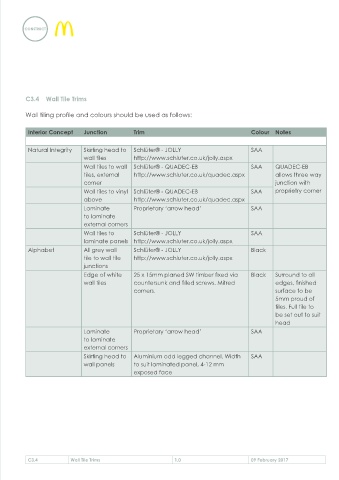

C3.4 Wall Tile Trims

Wall tiling profile and colours should be used as follows:

Interior Concept Junction Trim Colour Notes

Natural Integrity Skirting head to Schlüter® - JOLLY SAA
wall tiles http://www.schluter.co.uk/jolly.aspx
Wall tiles to wall Schlüter® - QUADEC-EB SAA QUADEC-EB
tiles, external http://www.schluter.co.uk/quadec.aspx allows three way
corner junction with
Wall tiles to vinyl Schlüter® - QUADEC-EB SAA proprietry corner
above http://www.schluter.co.uk/quadec.aspx
Laminate Proprietary ‘arrow head’ SAA
to laminate
external corners
Wall tiles to Schlüter® - JOLLY SAA
laminate panels http://www.schluter.co.uk/jolly.aspx
Alphabet All grey wall Schlüter® - JOLLY Black
tile to wall tile http://www.schluter.co.uk/jolly.aspx
junctions
Edge of white 25 x 15mm planed SW timber fixed via Black Surround to all
wall tiles countersunk and filled screws. Mitred edges, finished
corners. surface to be
5mm proud of
tiles. Full tile to
be set out to suit
head
Laminate Proprietary ‘arrow head’ SAA
to laminate
external corners
Skirting head to Aluminium odd legged channel. Width SAA
wall panels to suit laminated panel, 4-12 mm
exposed face

C3.4 Wall Tile Trims 1.0 09 February 2017
