CONSTRUCT
C3 Shopfitting

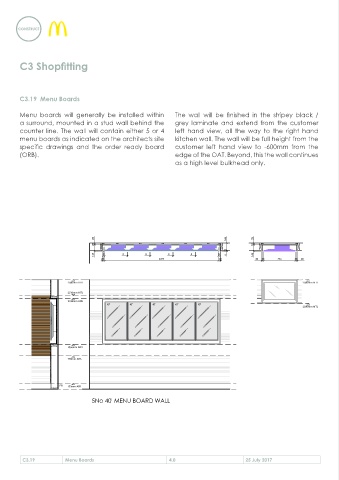

C3.19 Menu Boards
Menu boards will generally be installed within The wall will be finished in the stripey black /
a surround, mounted in a stud wall behind the grey laminate and extend from the customer
counter line. The wall will contain either 5 or 4 left hand view, all the way to the right hand
menu boards as indicated on the architects site kitchen wall. The wall will be full height from the
specific drawings and the order ready board customer left hand view to -600mm from the
(ORB). edge of the OAT. Beyond, this the wall continues
as a high level bulkhead only.
C3.19 Menu Boards 4.0 25 July 2017
