CONSTRUCT

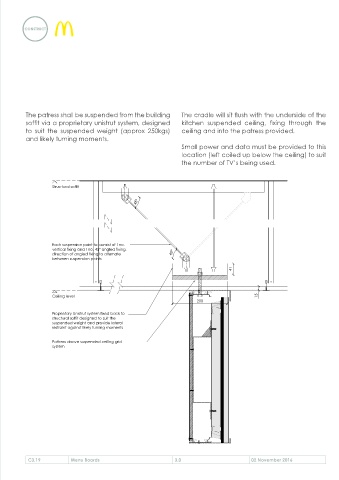

The patress shall be suspended from the building The cradle will sit flush with the underside of the
soffit via a proprietary unistrut system, designed kitchen suspended ceiling, fixing through the
to suit the suspended weight (approx 250kgs) ceiling and into the patress provided.
and likely turning moments.
Small power and data must be provided to this
location (left coiled up below the ceiling) to suit
the number of TV’s being used.
C3.19 Menu Boards 3.0 02 November 2016
