CONSTRUCT

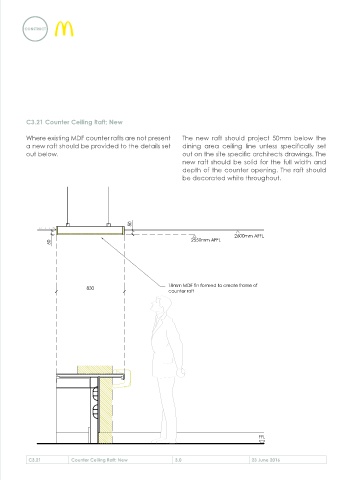

C3.21 Counter Ceiling Raft; New
Where existing MDF counter rafts are not present The new raft should project 50mm below the
a new raft should be provided to the details set dining area ceiling line unless specifically set
out below. out on the site specific architects drawings. The
new raft should be solid for the full width and
depth of the counter opening. The raft should
be decorated white throughout.
C3.21 Counter Ceiling Raft; New 3.0 23 June 2016
