CONSTRUCT

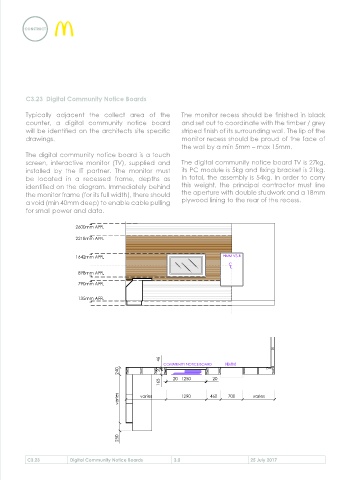

C3.23 Digital Community Notice Boards
Typically adjacent the collect area of the The monitor recess should be finished in black
counter, a digital community notice board and set out to coordinate with the timber / grey
will be identified on the architects site specific striped finish of its surrounding wall. The lip of the
drawings. monitor recess should be proud of the face of
the wall by a min 5mm – max 15mm.
The digital community notice board is a touch
screen, interactive monitor (TV), supplied and The digital community notice board TV is 27kg,
installed by the IT partner. The monitor must its PC module is 5kg and fixing bracket is 21kg.
be located in a recessed frame, depths as In total, the assembly is 54kg. In order to carry
identified on the diagram. Immediately behind this weight, the principal contractor must line
the monitor frame (for its full width), there should the aperture with double studwork and a 18mm
a void (min 40mm deep) to enable cable pulling plywood lining to the rear of the recess.
for small power and data.
C3.23 Digital Community Notice Boards 3.0 25 July 2017
