CONSTRUCT

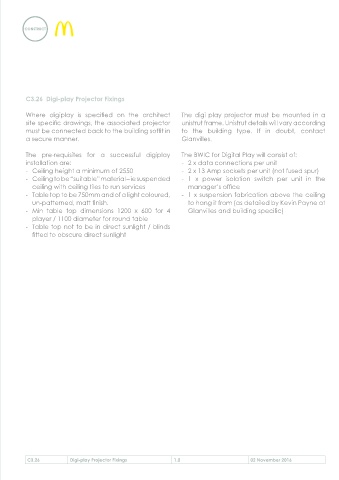

C3.26 Digi-play Projector Fixings
Where digiplay is specified on the architect The digi play projector must be mounted in a
site specific drawings, the associated projector unistrut frame. Unistrut details will vary according
must be connected back to the building soffit in to the building type. If in doubt, contact
a secure manner. Glanvilles.
The pre-requisites for a successful digiplay The BWIC for Digital Play will consist of:
installation are: - 2 x data connections per unit
- Ceiling height a minimum of 2550 - 2 x 13 Amp sockets per unit (not fused spur)
- Ceiling to be “suitable” material – ie suspended - 1 x power isolation switch per unit in the
ceiling with ceiling tiles to run services manager’s office
- Table top to be 750mm and of a light coloured, - 1 x suspension fabrication above the ceiling
un-patterned, matt finish. to hang it from (as detailed by Kevin Payne at
- Min table top dimensions 1200 x 600 for 4 Glanvilles and building specific)
player / 1100 diameter for round table
- Table top not to be in direct sunlight / blinds
fitted to obscure direct sunlight
C3.26 Digi-play Projector Fixings 1.0 02 November 2016
