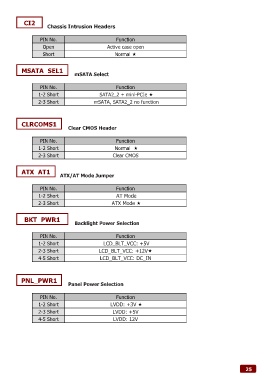

Page 32 - Advantech WP-5530

CI2
Chassis Intrusion Headers

PIN No. Function
Open Active case open
Short Normal 

MSATA_SEL1
mSATA Select

PIN No. Function
1-2 Short SATA2_2 + mini-PCIe 
2-3 Short mSATA, SATA2_2 no function

CLRCOMS1
Clear CMOS Header

PIN No. Function
1-2 Short Normal 
2-3 Short Clear CMOS

ATX_AT1
ATX/AT Mode Jumper

PIN No. Function
1-2 Short AT Mode
2-3 Short ATX Mode 

BKT_PWR1
Backlight Power Selection

PIN No. Function
1-2 Short LCD_BLT_VCC: +5V

2-3 Short LCD_BLT_VCC: +12V
4-5 Short LCD_BLT_VCC: DC_IN

PNL_PWR1 Panel Power Selection

1
PIN No. Function
1-2 Short LVDD: +3V 

2-3 Short LVDD: +5V
4-5 Short LVDD: 12V

25
