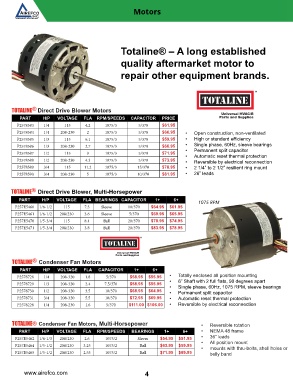

Page 4 - 2017 September Flyer

Motors
“A DIFFERENCE YOU CAN FEEL”

Totaline® – A long established

quality aftermarket motor to

repair other equipment brands.

®
TOTALINE Direct Drive Blower Motors
PART H/P VOLTAGE FLA RPM/SPEEDS CAPACITOR PRICE
P2578583 1/4 115 4.2 1075/3 5/370 $61.95
P2578584 1/4 208-230 2 1075/3 5/370 $66.95 • Open construction, non-ventilated
P2578585 1/3 115 6.1 1075/3 5/370 $59.95 • High or standard efficiency
P2578586 1/3 208-230 2.7 1075/3 5/370 $66.95 • Single phase, 60Hz, sleeve bearings
P2578587 1/2 115 9 1075/3 5/370 $71.95 • Permanent split capacitor
•
Automatic reset thermal protection
P2578588 1/2 208-230 4.3 1075/3 5/370 $73.95 • Reversible by electrical reconnection
P2578589 3/4 115 11.2 1075/3 15/370 $78.95 • 2 1/4” to 2 1/2” resilient ring mount
P2578590 3/4 208-230 5 1075/3 10/370 $81.95 • 26” leads

TOTALINE ® Direct Drive Blower, Multi-Horsepower
PART H/P VOLTAGE FLA BEARINGS CAPACITOR 1+ 6+ 1075 RPM
P257E5460 1/6-1/2 115 7.3 Sleeve 10/370 $64.95 $61.95
P257E5461 1/6-1/2 208/230 3.6 Sleeve 5/370 $69.95 $65.95
P257E5470 1/5-3/4 115 8.1 Ball 20/370 $78.95 $74.95
P257E5471 1/5-3/4 208/230 3.8 Ball 20/370 $83.95 $78.95

®
TOTALINE Condenser Fan Motors
PART H/P VOLTAGE FLA CAPACITOR 1+ 6+
P2578728 1/4 208-320 1.8 5/370 $58.95 $55.95 • Totally enclosed all position mounting

P2578729 1/3 208-320 2.4 7.5/370 $58.95 $55.95 • 6” Shaft with 2 full flats, 90 degrees apart
•
Single phase, 60Hz, 1075 RPM, sleeve bearings
P2578730 1/2 208-320 3.5 10/370 $68.95 $64.95 • Permanent split capacitor
P2578731 3/4 208-320 5.5 10/370 $72.95 $69.95 • Automatic reset thermal protection
P2578228 1/4 208-230 1.6 5/370 $111.00 $106.00 • Reversible by electrical reconnection

TOTALINE® Condenser Fan Motors, Multi-Horsepower • Reversible rotation

PART H/P VOLTAGE FLA RPM/SPEEDS BEARINGS 1+ 6+ • NEMA 48 frame
P257E5462 1/6-1/3 208/230 2.6 1075/2 Sleeve $54.95 $51.95 • 36” leads
P257E5464 1/5-1/2 208/230 3.25 1075/2 Ball $63.95 $59.95 • All position mount
•
mounts with thru-bolts, shell holes or
P257E5465 1/5-1/2 208/230 2.55 1075/2 Ball $71.95 $69.95 belly band

www.airefco.com 4
