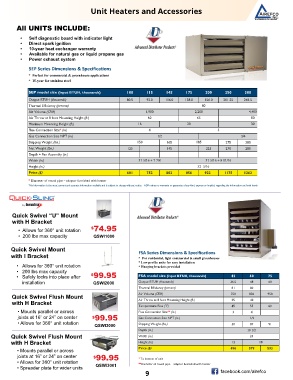

Page 9 - 2017 September Flyer

Unit Heaters and Accessories

“A DIFFERENCE YOU CAN FEEL”
All UNITS INCLUDE:

• Self diagnostic board with indicator light
• Direct spark ignition
• 10-year heat exchanger warranty
• Available for natural gas or liquid propane gas
• Power exhaust system
SEP Series Dimensions & Specifications
* Perfect for commercial & greenhouse applications
* 15-year for stainless steel

SEP model size (input BTUH, thousands) 100 115 145 175 200 250 300 400
Output BTUH (thousands) 80.5 92.0 116.0 138.0 156.0 201.25 241.5 312.0
Thermal Efficiency (percent) 80
Air Volume (CFM) 1,900 2,200 4,400
Air Throw at 8 foot Mounting Height (ft.) 60 65 80
Maximum Mounting Height (ft.) 16 20 30
Flue Connection Size* (in.) 4 5 6
Gas Connection Size NPT (in.) 1/2 3/4
Shipping Weight (lbs.) 150 165 185 275 280 315
Net Weight (lbs.) 125 145 225 270 280 285
Depth + Fan Assembly (in.)
Width (in.) 31 5/16 + 7 7/8 31 5/16 + 8 11/16 31 5/16 + 9 13/16
Height (in.) 32 3/16
Price ($) 681 752 802 856 922 1175 1262 1505
* Diameter of round pipe – adaptor furnished with heater
This information is the most current and accurate information available and is subject to change without notice. ADP makes no warranty or guarantee of any kind, express or implied, regarding the information set forth herein, including without
limitation any warranty regarding its currency, accuracy or completeness or any warranty of merchantability or fitness for a particular purpose.
02/15

Quick Swivel “U” Mount
with H Bracket
• Allows for 360° unit rotation $ 74.95
• 200 lbs max capacity QSWI1000

Quick Swivel Mount FSA Series Dimensions & Specifications
with I Bracket * For residential, light commercial & small greenhouses
* Low profile units for easy installation
• Allows for 360° unit rotation * Hanging brackets provided
• 200 lbs max capacity
• Safely locks into place after $ 99.95 FSA model size (input BTUH, thousands) 45 60 75
installation QSWI2000 Output BTUH (thousands) 36.5 48 60
Thermal Efficiency (percent) 81 80
Quick Swivel Flush Mount Air Volume (CFM) 750 830 950
with H Bracket Air Throw at 8 foot Mounting Height (ft.) 25 40
Temperature Rise (°F) 45 55 60
• Mounts parallel or across Flue Connection Size** (in.) 3 4
joists at 16” or 24” on center $ 99.95 Gas Connection Size NPT (in.) 1/2
• Allows for 360° unit rotation QSWI3000 Shipping Weight (lbs.) 50 87 91

Depth (in.) 18 1/2
Quick Swivel Flush Mount Width (in.) 25
with H Bracket Height (in.) 13 18
• Mounts parallel or across Price ($) 496 579 593
joists at 16” or 24” on center $ 99.95 * To bottom of unit
• Allows for 360° unit rotation **Diameter of round pipe – adaptor furnished with heater
• Spreader plate for wider units QSWI3001
8 9 facebook.com/airefco
