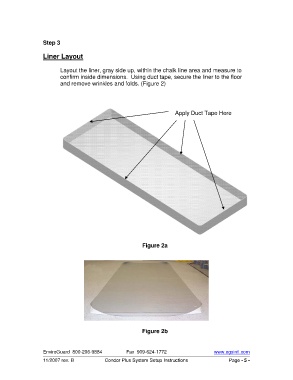

Step 3
Liner Layout
Layout the liner, gray side up, within the chalk line area and measure to
confirm inside dimensions. Using duct tape, secure the liner to the floor
and remove wrinkles and folds. (Figure 2)
Apply Duct Tape Here
Figure 2a
Figure 2b
EnviroGuard 800-206-9884 Fax 909-624-1772 www.egsintl.com
11/2007 rev. B Condor Plus System Setup Instructions Page - 5 -
