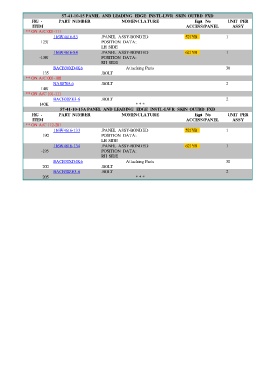

Page 61 - Door 521

57-41-10-15 PANEL AND LEADING EDGE INSTL-LWR SKIN OUTBD FXD
FIG - PART NUMBER NOMENCLATURE Eqpt No UNIT PER
ITEM ACCESS/PANEL ASSY
** ON A/C 001-111
116W4616-83 .PANEL ASSY-BONDED 521YB 1
125J POSITION DATA:
LH SIDE
116W4616-84 .PANEL ASSY-BONDED 621YB 1
-130J POSITION DATA:
RH SIDE
BACB30XD4K6 Attaching Parts 30
135 .BOLT
** ON A/C 001-100
NAS8703-6 .BOLT 2
140J
** ON A/C 101-111
BACB30ZE3-6 .BOLT 2
140K * * *
57-41-10-15A PANEL AND LEADING EDGE INSTL-LWR SKIN OUTBD FXD
FIG - PART NUMBER NOMENCLATURE Eqpt No UNIT PER
ITEM ACCESS/PANEL ASSY
** ON A/C 112-201
116W4616-133 .PANEL ASSY-BONDED 521YB 1
190 POSITION DATA:
LH SIDE
116W4616-134 .PANEL ASSY-BONDED 621YB 1
-195 POSITION DATA:
RH SIDE
BACB30XD4K6 Attaching Parts 30
200 .BOLT
BACB30ZE3-6 .BOLT 2
205 * * *
