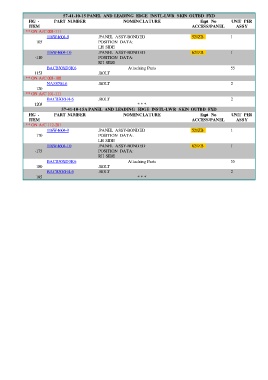

Page 64 - Door 521

57-41-10-15 PANEL AND LEADING EDGE INSTL-LWR SKIN OUTBD FXD
FIG - PART NUMBER NOMENCLATURE Eqpt No UNIT PER
ITEM ACCESS/PANEL ASSY
** ON A/C 001-111
116W4604-9 .PANEL ASSY-BONDED 521ZB 1
105 POSITION DATA:
LH SIDE
116W4604-10 .PANEL ASSY-BONDED 621ZB 1
-110 POSITION DATA:
RH SIDE
BACB30XD3K6 Attaching Parts 55
115J .BOLT
** ON A/C 001-100
NAS8704-6 .BOLT 2
120
** ON A/C 101-111
BACB30ZE4-6 .BOLT 2
120J * * *
57-41-10-15A PANEL AND LEADING EDGE INSTL-LWR SKIN OUTBD FXD
FIG - PART NUMBER NOMENCLATURE Eqpt No UNIT PER
ITEM ACCESS/PANEL ASSY
** ON A/C 112-201
116W4604-9 .PANEL ASSY-BONDED 521ZB 1
170 POSITION DATA:
LH SIDE
116W4604-10 .PANEL ASSY-BONDED 621ZB 1
-175 POSITION DATA:
RH SIDE
BACB30XD3K6 Attaching Parts 55
180 .BOLT
BACB30ZE4-6 .BOLT 2
185 * * *
